2500mAh Lithium Polymer pouch cell with built-in protection circuit.
This is the battery which is included in our Tanmatsu product.
This battery can both be used as replacement part for Tanmatsu or as battery for other projects. The PH 2.0 connector on this battery is compatible with the battery connector on lots of Adafruit and Sparkfun boards.
Parameter
Value
Capacity
2500 mAh
Chemistry
Lithium Polymer
Dimensions

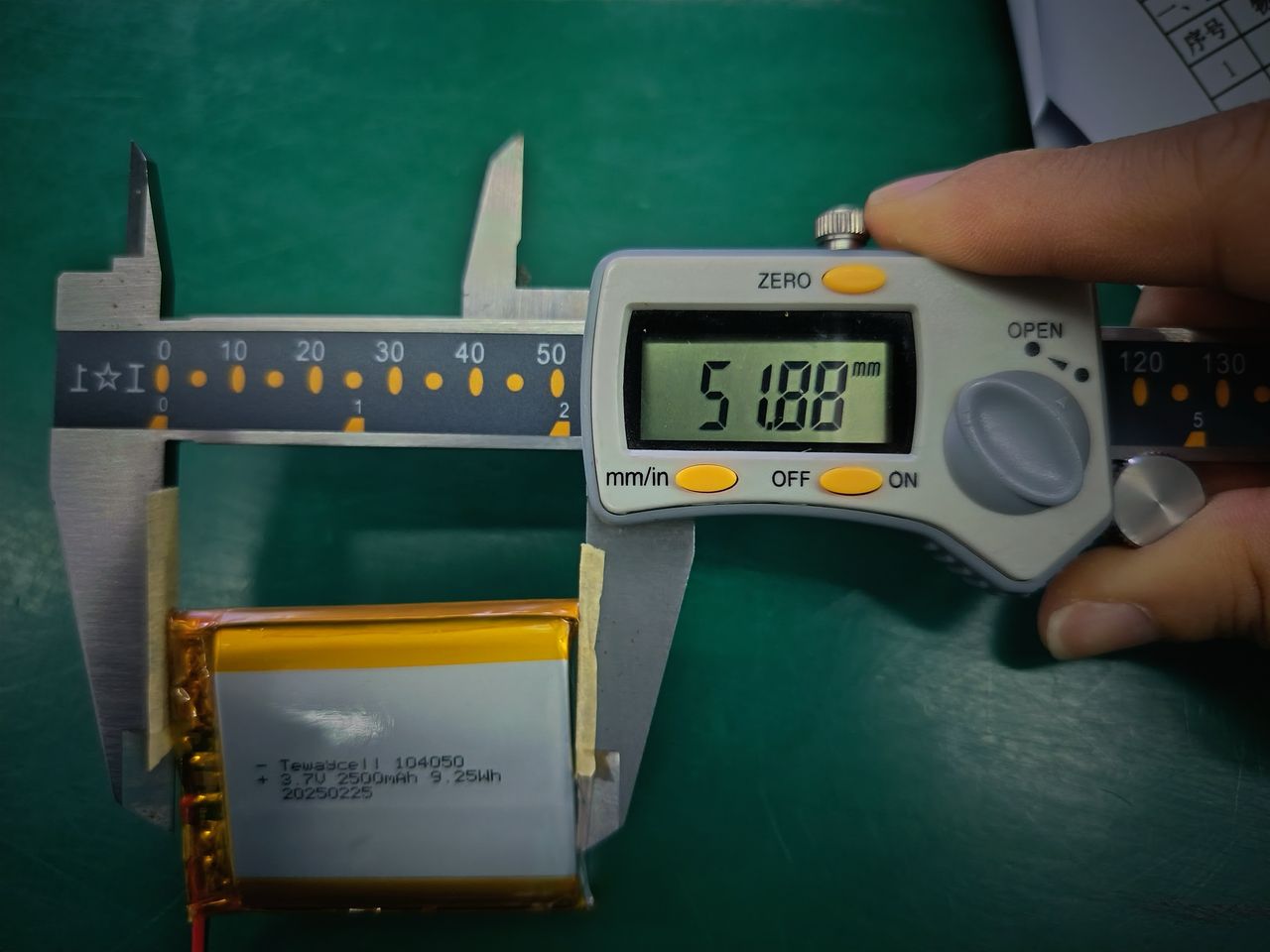

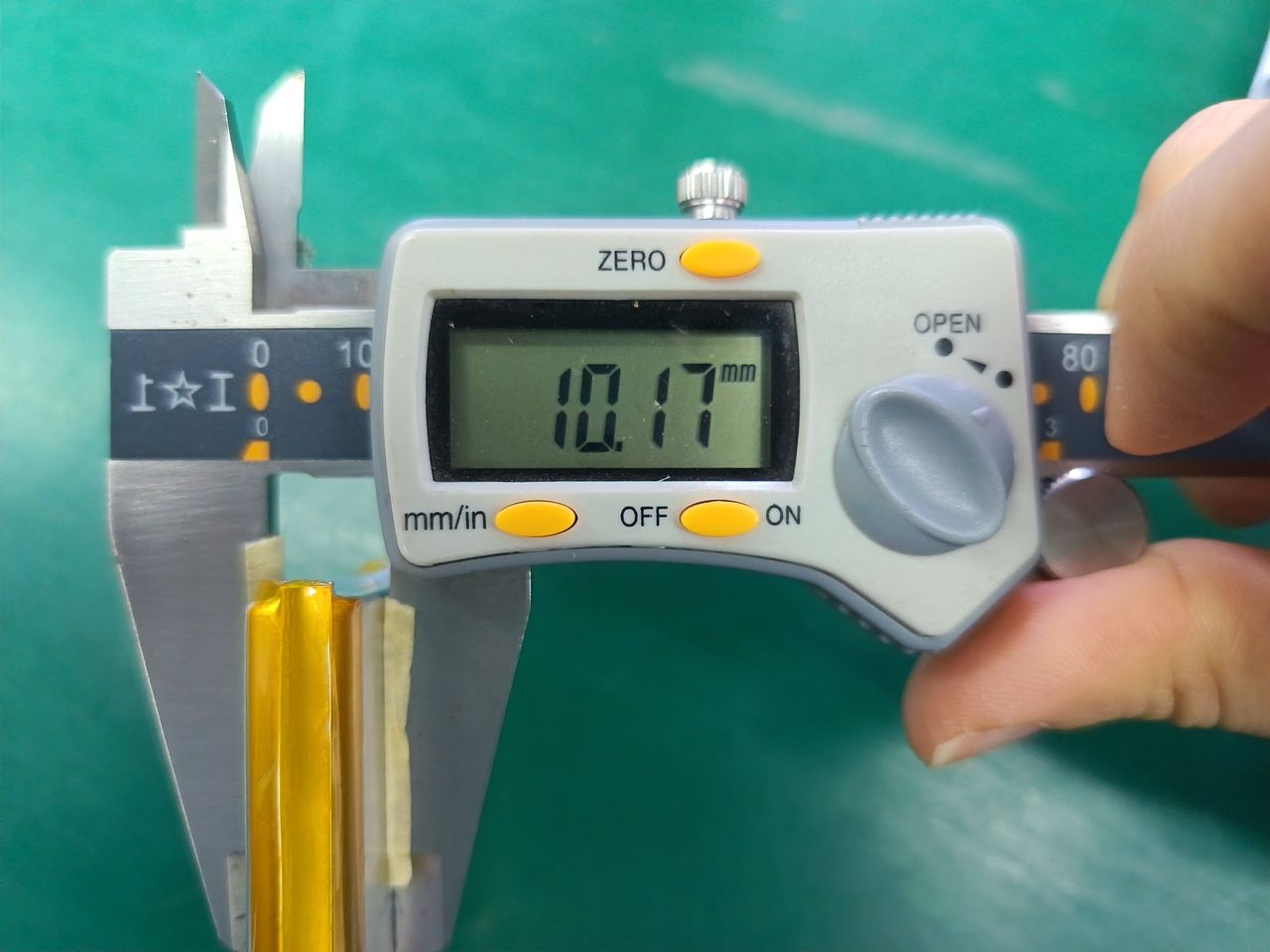

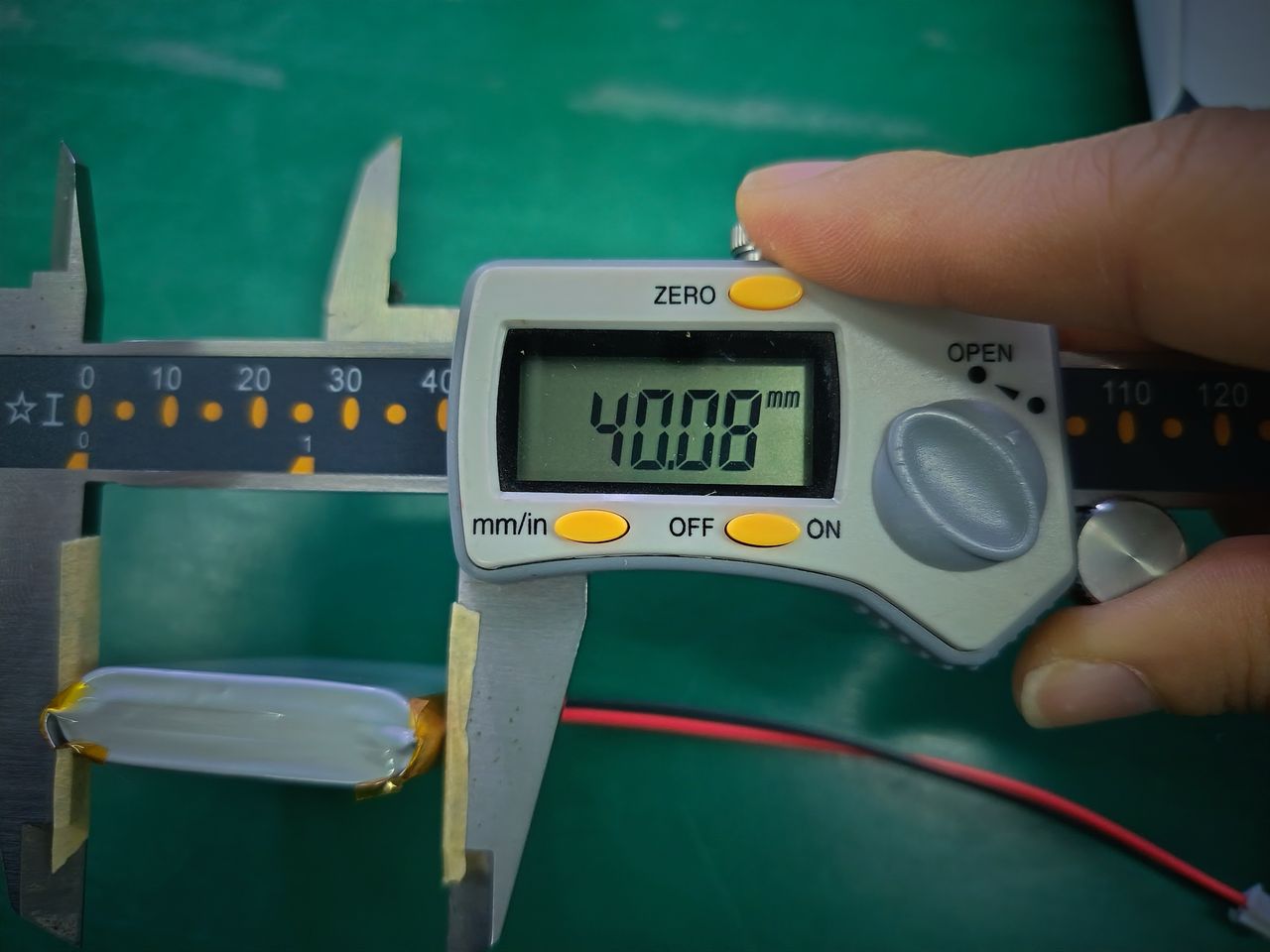

104050 (w: 10mm, h: 40mm, l: 50mm) See photos for exact sizes
Connector
JST compatible PH 2.0
Manufacturer
Tewaycell
Minimum cell voltage [V]
Safety cutoff at 3.0v
Nominal cell voltage [V]
3.7 V
Maximum cell voltage [V]
4.2 V
Package contents
1x Li-Po battery
This product can be used as battery for Tanmatsu or for other DIY projects. With the built-in protection circuit this battery is protected against short circuits, under- and overvoltage.

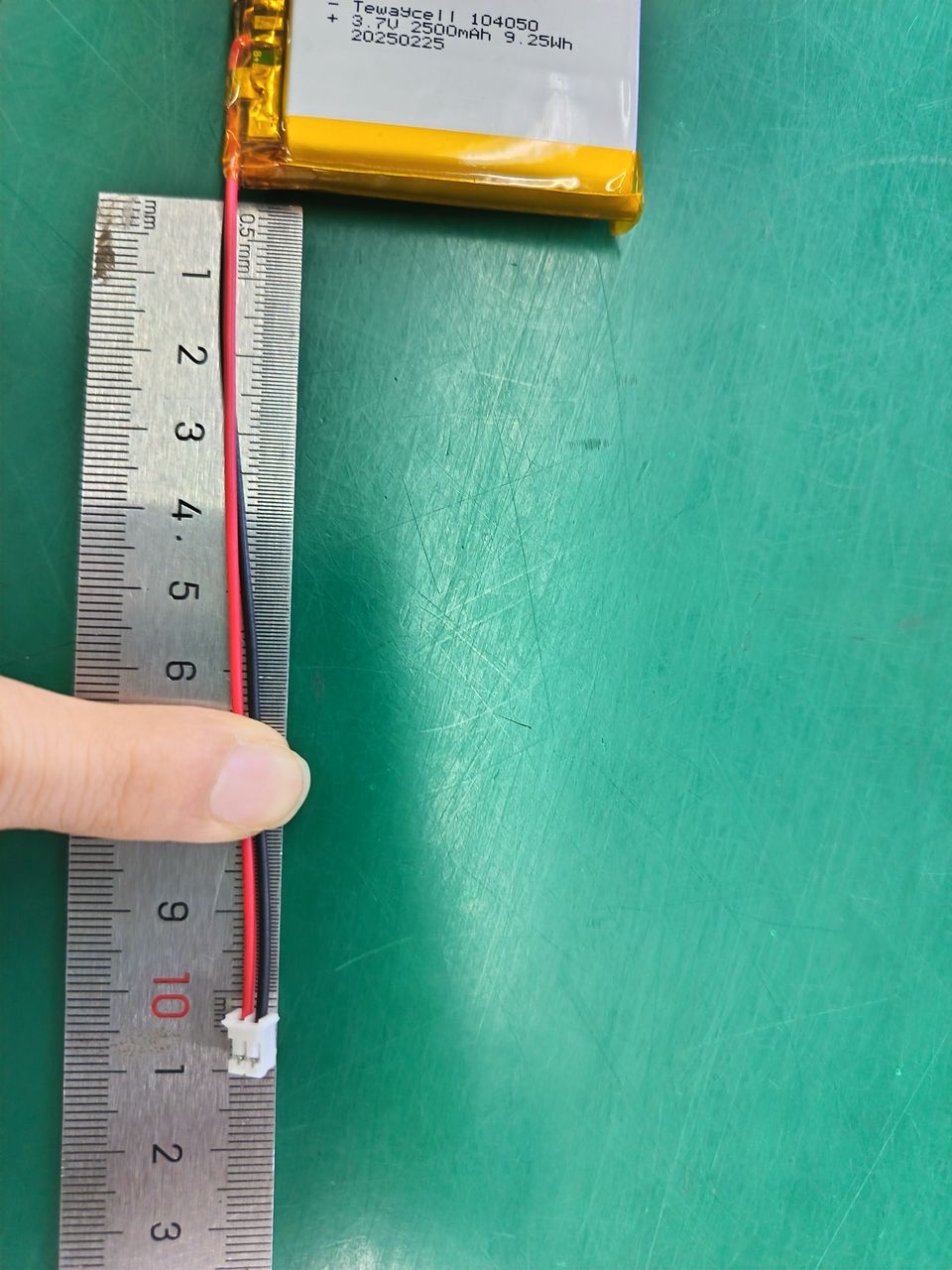

The battery is fitted with a PH 2.0 style connector, this is the same connector used on many Adafruit development boards. Warning: always check the polarity when connecting this battery to any board other than Tanmatsu.
